PET Bottle Testing Equipment

PET Bottle Burst Tester is specialized test equipment for testing the internal pressure resistance of PET bottles. Users can choose the test method basing on their requirement. It is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.

Operation

• It consists of a chamber which consists of simple bottle neck holder.
• A thick polycarbonate sheet is fixed on door which enables to view test with proper safety.

Operating Method

• A bottle is filled with water and held in a fixture which has simple mechanical locking arrangement.
• Timer is set as per requirement.
• Test button is pressed.
• Pressurizing nozzle is moved down on bottle neck by pneumatic cylinder.
• Solenoid valve in pressure line also opens and bottle is pressurized.
• After completion of time system stops automatically.

The tester can be set to perform "time-holding resistance" tests at set pressure & time period according to requirement of bottle specifications. Custom operating procedure can be provided on request.

Specifications
Container Type : 28mm PCO Pet bottle (other sizes available on request.)
Diameter of bottle 200mm & height 400mm / 3 ltrs.
Output on analog Pressure gauge / digital as per model.
Robust design for reliability ensures long service life.
Requires 7 bar inlet air for operating system
Pressure Booster generates pressure up to 0 - 300 PSI (Optional)
Stainless steel design ensures the durability of tester
230 V AC Single phase supply for bursting test.

Tensile strength and elongation are the two prime characteristics of most of the raw materials, whether they are metals or non-metals, such as foam, rubber, textiles, plastic, paper or finished products such as rods, wires, ropes, yarns, belts etcetera. These properties very often play the major role in determining the suitability of any raw material for any specific application. It is therefore, of utmost importance to determine these characteristics accurately, conveniently, and quickly.

“TBG” Tensile Testing Machine provides a relatively inexpensive way for determining the tensile strength and elongation of variety of raw materials. They are based on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, while the other end is made to move at a known fixed speed with the help of motor, gear box and screw arrangement. The load exerted on the stationary grip is sensed by a load cell and indicated by a digital load indicator. The controller is microprocessor based and has the facility of over load protection, peak hold and auto calibration. There is a socket in the indicator which is connected to the PC. The load directly indicated in kilograms or Newton.

We provide the Window based software (In Computerized Model Only) which gives the different measurement parameter and the graph between load vs elongation. The report can be printout by using proper printer. The elongation of the test specimen is measured on a digital indicator fixed on the frame of the tester, which indicates the distance between the grips and also in computer screen in computerized model.

The tester is finished in metallic painting and bright chrome, zinc plating to give the apparatus a corrosion resistant finish. It is supplied complied which electrical. Which include micro- switches, Push buttons, and contactors for safe and convenient operation.

The variable speed model speed is vary by a knob fixed on the panel and the speed also digitally indicated on the control panel of the instrument or by simply types the speed on the monitor of the computer in computerized model. Different model have speeds suitable for testing different materials. Various built in safety arrangements such as over travel protection are provided.

A variety of grips suitable for holding different materials are offered as optional accessories.

Essential for quality control and development for consumers of corrugated and solid fibre board, shipping containers, bottles, filled bags etc.

Drop test is intended for use in evaluating the capability of a container, corrugated box, filled bags, bottles and other similar items to with stand the sudden shock resulting from a free fall, or to evaluate the capability of these and its inner packing to protect its contents during the sudden shock resulting from a free fall. Drop test method may also be used to compare the performance of different package designs. This test method may also permit observation of the progressive failure of a these items and the damage to its contents.

Features :

• A precise and reliable machine
• Sturdy in construction
• Precisely machined to International Standards
• Costs less than half of the similar imported tester — saves valuable foreign exchange too.
• Facility for corner drop

Fill Height Gauge Works as Laboratory Tool that Improves Accuracy During Measurements Involving Container Fill Height and Volume. the Gauge Allows Operators to also Adjust Fill Level of Containers that Need to Be Evaluated to Standard Predetermined Level. the Adjustable Gauge Operations also Allow Operators to Set Depth of Pipette for Appropriate Level with Excess Fluid Drawn Off to End of Pipette.

Features :

• Used for Adjusting Water Level in Bottle to Predetermined Fill Heights
• Dual Scale Where Calibration is Possible in Millimeters and Inches
• Designed for all Size Bottles Perfect
• Gauge Can also Be Preset in Inches/millimeters Options Form Checking of Fill Height Levels On Production Line
• Can Be Used for Measuring Exact Fill Point of Bottle and Then Comparing the Values to Standard
• Saves Time and Improves Accuracy During Volume Measurements and Container Fill Heights

Applications :

• For Fill Height and Volume Measurements in -bottle Filling Industry

Specifications :

• Adjustable Gauges
• Allowing Setting Depth of Pipette
• Provision of Excess Fluid to Be Drawn Off At End of Pipette

Capitalizing on our vast industry experience, we offer a premium quality range of gas volume testers which is also known as carbonation tester. These testers are extensively used to measure several types of gas chambers, pet and glass bottles. Apart from this, these testers are also used to measure the amount of dissolved carbon dioxide in carbonated drinks. In any aerated drink making unit, these testers are essentially required. These testers are available in two primary form of glass bottles fitted with crown caps and PET bottles with plastic ROPP caps.

GENERAL
Test specimen shall be prepared from the part of container where markings are not found.

TEST SPECIMEN
The size of test specimen shall be 50 mm * 50 mm and the thickness shall be the original thickness of the test specimen. The test specimens shall be prepared.

MEASUREMENT

• Install the white standard plate, adjust the reading (T₁) of the device's current meter to be 100; adjust the amount of  incident light.
• Under the status where the white standard plate is installed, install and measure the test specimen to obtain the indication (T₂) of the current meter. The full light transmittance shall be calculated according to the following formula:

PET Bottle Burst Tester is specialized test equipment for testing the internal pressure resistance of PET bottles. Users can choose the test method basing on their requirement. It is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.

Operation

• It consists of a chamber which consists of simple bottle neck holder.
• A thick polycarbonate sheet is fixed on door which enables to view test with proper safety.

Operating Method

• A bottle is filled with water and held in a fixture which has simple mechanical locking arrangement.
• Timer is set as per requirement.
• Test button is pressed.
• Pressurizing nozzle is moved down on bottle neck by pneumatic cylinder.
• Solenoid valve in pressure line also opens and bottle is pressurized.
• After completion of time system stops automatically.

The tester can be set to perform "time-holding resistance" tests at set pressure & time period according to requirement of bottle specifications. Custom operating procedure can be provided on request.

Specifications

• Container Type : 28mm PCO Pet bottle (other sizes available on request.)
• Diameter of bottle 200mm & height 400mm / 3 ltrs.
• Output on analog Pressure gauge / digital as per model.
• Robust design for reliability ensures long service life.
• Requires 7 bar inlet air for operating system
• Pressure Booster generates pressure up to 0 - 300 PSI (Optional)
• Stainless steel design ensures the durability of tester
• 230 V AC Single phase supply for bursting test.

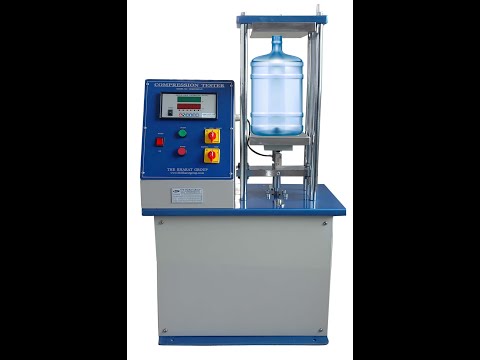

“TBG” Top Load Tester is used for measuring vertical strength of bottle. Good strength avoids damage of bottles during stacking, Transportation, Storage and packing. Bottle Compression Tester is efficient and easy to use equipment intended for measuring the ability of bottle to resist external compressive forces. This method describes how to determine the resistance of a bottle to compressive forces. This is accomplished by placing the bottle between two flat platens, one of which is mechanically driven to compress the bottle. A recording device is incorporated to indicate the force required to compress the bottle. The method is used to compare the compressive resistance of different lots of similar bottles or to compare bottles of different grades.

The instrument is made in two parts, one is for main instrument and the other is the control panel. The ultimate test is to determining overall quality and performance of the bottles and jars. The instrument is bright chrome plating, zinc plating, painted in metallic paints. It is supplied complied with electrical which include micro-switches, Push buttons and contactors for safe and convenient operation.

In Computerized model, we provide the Window based software which gives the different measurement parameter and the graph. The report can be printout by using proper printer. The variable speed model speed is vary by a knob fixed on the panel and the speed also digitally indicated on the control panel of the instrument or by simply types the speed on the monitor of the computer. Different model have speeds suitable for testing different materials. Various built in safety arrangements such as over travel protection, are provided.

TBG Hot Wire Bottle Cutter offers an easy and cost saving way for cutting containers for section weight analysis. A clean section without deformation will be obtained by a quick cutting of bottles through heated hot wires. A precision and repeatable cutting task is easy to achieve and it’s necessary for a proper analysis.

With TBG, a PET bottle could be cut up to 4 predetermined sections, each section will be checked to ensure that it conforms to the exact weight assigned.

Feature :

• Bottle cut with accuracy
• Rapid warming the wires
• Energy saving design
• Up to 4 sections cut
• Durable design
• Easy to operate
• Cutting up to 2 L bottle
• Safety cover design which exhausts gases out of face of the operator (optional)
• Preheating Mode / Cut Mode (heating max)
• Dual heating mode saves energy and extends the life of wires
• Adjustable supports for bottles during the cutting process
• Graduated rulers allow accurate positioning of wires

Top Load Tester is used for measuring vertical strength of bottle. Good strength avoids damage of bottles during stacking, Transportation, Storage and packing. Bottle Compression Tester is efficient and easy to use equipment intended for measuring the ability of bottle to resist external compressive forces. This method describes how to determine the resistance of a bottle to compressive forces. This is accomplished by placing the bottle between two flat platens, one of which is mechanically driven to compress the bottle. A recording device is incorporated to indicate the force required to compress the bottle. The method is used to compare the compressive resistance of different lots of similar bottles or to compare bottles of different grades.

Features :

• Stainless Steel make body
• Heavy duty load cell
• Manual Operated
• Easy calibration method
