Cap & Closure Testing Equipment

There are a number of reasons for the popularity of the Spring Cap mechanical torque meter. They include:

• It’s rugged and durable.
• Most corrosive environments do not impact its condition or performance.
• It’s reasonably priced.
• Consistent – and dependable – accuracy.
• Teflon Coating (Optional)
• After years of use it can be repaired or rebuilt into almost-new condition.

Tightness control is a critical process in all bottling plants. Without the use of a finely manufactured bottle cap torque tester, bottlers can face evaporation and leakage issues with their products if the caps are not secure. Excessive tightness can cause another expensive problem: Bottles are vulnerable to breakage and cap removal becomes an issue for consumers.

This spring torque testers are solidly built with cast aluminum.  Teflon coating of either model, effective for extreme corrosive conditions is available for a modest up charge.

The Base Clearance Gauge is specifically designed to measure the dome height in the bottom of PET/Glass containers. The Base Clearance Gauge comes complete with a high accuracy, digital readout with built-in port for serial communications. A see-through base ensures clear visibility as measurements are taken.

Used to measure the dome height in the bottom of the bottle

Features :

• Reliable and simple to use
• Thick Stainless Steel base
• Ideal for at-the-line measurements near the blow molder
• Optimum functionality
• Durable Finish
• Longer functional life
• Mitutoyo dial gauge with digital output is fitted for accurate results

Total Stainless Steel 304 grade with stand and virus burn out unit attached with it.

TECHNICAL SPECIFICATION

• Model No. : TBG-322BSC
• Outer Cabinet : Robust Construction made up of All Stainless Steel 304 grade 1mm thickness
• Air Flow system : Re-circulating system of 70% air through HEPA filter and 30% Air exhaust in environment
• Work Table : Single Perforated stainless steel 304 grade CNC Capsule Cutting
• Hepa Filter : Media Ultra clean glass fiber paper imported 0.3 microns efficiency 99.97% (3'x2'x6")
• Blower :     Fitted with dynamically balanced motor Assemblies.
• RPM Speed 1440 CFM 90fpm ±20 approx.
• Pre-filter : Media Synthetic, non-woven polyester fibers, 90% down to 10μ. (Washable)
• Lights : Fluorescent tube light - 20w x 1nos. U.V light - 15w x 1nos.
• Power supply : 230 v ±10v / 50 Hz Single phase AC
• Switch : Switches for Blower, Fluorescent light, U.V light, exhaust with indicator
• Door : The front door moves vertically up & Down with concealed counter balance weight. Polycarbonate clear thick 6mm Frame This door is fully opened the clearance
• Electrical : The front facing panel is fitted with 15 Amps 1 nos.
• Noise level : 75 DB less than
• Additional : Manometer is provided hanging at the top 100 mm
• Valve : Valve for Gas cock/ air/ vacuum.( nozzle for inlet 2 cocks)
• Duct : Flexible AL Pipe 6” round for ten feet (Amount 650 for extra ten ft)
• Lux : Provide to working chamber 900 lux

SPECIFICATION :

• Robust construction outer chamber is made of GI  sheet duly powder coated for lasting finish.
• Inner chamber made of STAINLESS STEEL SHEET (304 Grade).
• Fitted with durable coaxial blower for forced air circulation at doubled walled back to maintain temperature uniformity in the chamber.
• A full view inner acrylic door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
• High grade GLASS WOOL INSULATION between outer and inner chamber for minimal thermal losses.
• Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 an eco friendly refrigerant (emersion kit)
• Temperature controlled by Microprocessor Based PID
• Digital indicator cum controller with an accuracy of ± 1°C
• Temperature controller cum Indicator Digital based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature
• Supplied with heavy angle iron frame on which cooling unit is placed and below castor wheels are provided for
• the easy movement and portability
• Single phase power supply with Operating Voltage 220 VAC (50 Hz).

Degassing of carbonated beverages is necessary for quality control analysis. If there are variations in degassing it will influence values of PH, Brix Acidity & Aspartame results.

Features :

• Mini Air Generator 3 Ltr./Min X 2 Outlets
• Control Panel With Timer
• P.P. Flask Beaker For Test Sample
• Stainless Steel Tray
• Silicone Rubber Tubes
• Air Pump Operated
• Made From S.S 304 BASE And Control Panel
• Digital Timer With Auto Stop Function
• Acrylic Chamber For Air Filter.

Just press a button and on completion of time degassing will stop automatically.

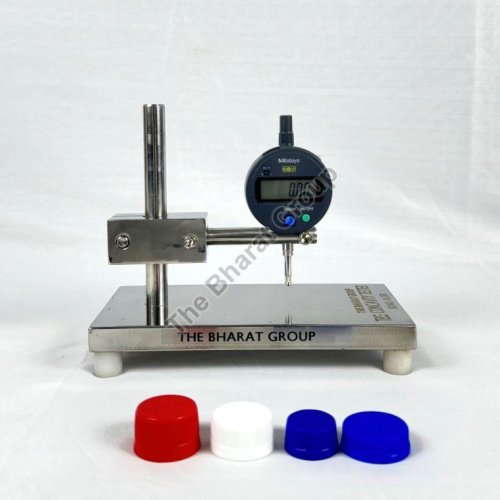

Closure Concavity Tester is useful for bottle closure. It is provided with digital gauge for more accurate measurements.

Features :

• Features LCD display support
• Stainless Steel guide rod

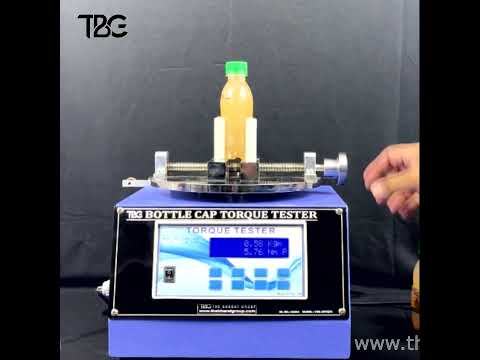

Torque Tester is used for Measuring Incremental / Removal torque of closures. Round / Square/ Rectangular /Oval Bottles / Jars can be held.

Adjustable posts effectively grip a broad range of container shapes and sizes. Flat and custom made jaws are available for unique profiles. A rugged aluminum and Stainless steel design and simple operation allow for use in laboratory and production environments.

Features :

• Automatic digital reading output
• Peak hold provision
• Digital Display
• Strong SS grips pins adjustable
• Internal Calibration

Item Content :

• Universal voltage AC adapter,
• Quick-start guide and user's guide
• Calibration Kit

Volume Of Exhaust
Our fume hoods are capable of maintaining a constant exhaust volume. The maximum variation permissible due to baffle adjustment, in our in house test procedure is 6% of the given volume of exhaust.

Pressure (Static)
Our fume hoods are designed to minimize the loss of static pressure at a given baffle opening position.

Noise/Sound Levels
Our fume hoods are designed to generate lower noise levels. The performance of our fume hoods are rated better than the industry standards of 75 db, at approximately 15 cm distance from the sash.

Sash Counter Balance Systems
Chain & Sprocket Systems - Typically a hardened chain (similar to a bicycle chain) runs over pockets to the counterweight.

The sprockets are attached onto a single axle which allows them to turn at the same time.

This system will travel smoothly no matter where the user chooses to lift the sash along the hood width. This is especially important on longer hoods where the user may be lifting the sash at one end.

FRP Generally Used For Highly Toxic Chemicals Like Sulphuric Acid, Hydrochloric Acid, Nitric Acid Are Using In Fume Hood.

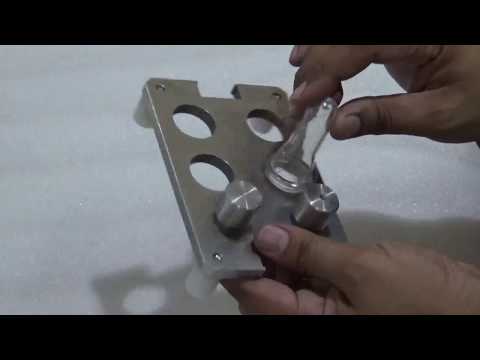

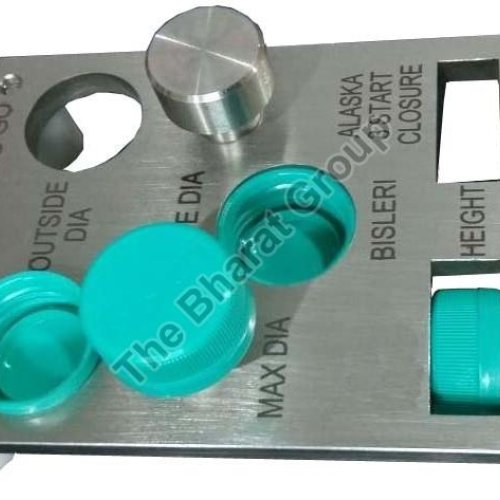

This gauges are useful for inspection of pet bottles closures saves time required for inspection of closures. Made from stainless steel.

Gauges for different neck sizes are available.

• 1810
• 1881
• 29/25
• 26/22
• 30/25
• Alaska

Closure

• Inside diameter
• Outside diameter
• Maximum diameter.
• Height.

Details :

• The body is robust  constructed  and made up of double walled stainless steel 304 grade 1 mm thick
• All specification meets the U.S. Federal Standard 209E (Class 100 purity)
• The work table is made of stainless steel 304 grade.
• All joints are sealed with scholastic sealant.
• Transparent front and side panels of UV resistant polycarbonate sheet fully transparent fixed with clamps.
• The unit is fitted with per-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.99% with cold, DOP, thus retaining all air-borne particles of size : 0.3 micron and larger.
• Using a dynamic machine, the blower and motor assembly ISI marked is statically and dynamically balanced.
• Blower Assembly with high RPM motor, enclosed in an SS casing suitably suspended in a pair springs & connected to the filter chamber through flexible canvas duct
• Blowers are mounted on vibration isolation mounts to minimize vibration and possess noiseless operation.
• Height of the working table provides comfortable “ Sit Down” working position for the operation to work on 220/230 volts AC. Supply
• Individual controlling switch & indicator for blower, UV and fluorescent tubes.

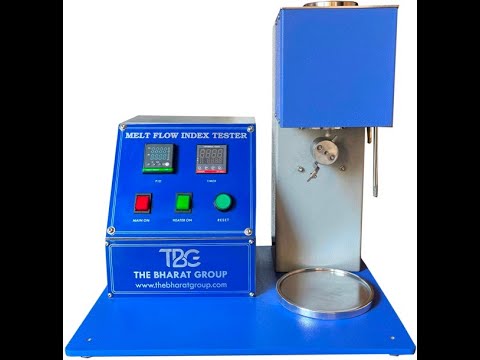

Melt Flow of thermoplastic material is defined as the rate of flow in grams per ten minutes of extrude of molten resins through a jet of a specified length and diameter under prescribed conditions of temperature, load & piston position in a cylindrical cavity inside a heated metallic tube barrel at the measurement is being made.

Melt Flow Index Apparatus for Plastic consists of a heated extruder tube, an interchangeable jet through which the material under test is extruded, and a piston with dead weights to apply the specified pressure on the material inside the extruder tube. The extruder tube is made from carbon steel and is heated by means of a Bend Heater, which surrounds its outer circumference. A PID controller is provided to indicate & control the temperature of the tube. The tube has a whole parallel to its bore for placing the thermocouple junction. The heater logged with mineral wool insulation. The assembly is fixed on a rigid stand. The bottom of the tube is lagged with a 3 mm thick insulation of PTFE to prevent sticking of the extrude. The jet through with the extruder is pushed out is made from hardened and ground die steel. It is held at the bottom of the extruder tube. The piston made from silver steel relieved at the upper end is provided to push the extrude out of the jet. The piston moves inside the cavity of tube. A sleeve to provide to guide the relieved portion of the piston. The top of the piston carries a plate-form for keeping the load on. The plate-form is thermally insulated from the load. The extruder tube assembly is mounted on a metal box. A sheet metal control panel is mounted on the side of the equipment & houses the PID Controller, DIGITAL PRESET TIMER at other electronic components. Cleaning tools for tube cavity and jets & stoppers & cutter for the extradite are also supplied with the equipments.

RELATED STANDARD :
ASTM-D- 1238 – 1982 : Standard test method for flow rate of Thermoplastic by Extrusion Plastometer.

Secure Seal Tester is designed to check bottle and closure thread integrity and Seal strength for Glass / PET Beverage Containers with Plastic Closures Most Useful for Carbonated Drinks.

The equipment can handle max 3 litres Container with diff size closures. Change Parts are available for different size closures

Features :

• Analogue Output with PSI and Kg/cm2 Indication
• Indication Needle provided for holding peak pleading in analogue Pressure Gauge
• Stainless Steel Construction
• With Top Door Safety Internal fittings High pressure push type
• Levelling Base
• Neck Cutter
• Consisting of : Analogue test pressure gauge 300 PSI 4 " Dial

Features :

• Doubled  walled construction
• Inner chamber  and outer chamber is   constructed from stainless steel 304 grade
• Water level indicator
• Bucket / Basket  Made of Stainless Steel
• Lid Closing by Radial Locking System
• Sealing of Lid by Rubber Gasket
• Lid is fitted with Pressure Gauge,  Safety Valve
• Supplied complete with Steam releasing cock, heating element, vacuum breaker, adjustable valve for air exhaust etc.
• Operating range from 10psi to 20psi pressure(adjustable)
• Sterilizing Temperature 113°C- 121°C
