Preform Testing Equipment

Method of Cutting

• Put off Metal stopper, open handle with two hands.
• Put preform in the cutting blade area and start pressing slowly.
• Repeat the operation till the preform is cut.

Warning

• This product is made of metal. Please do not use in Induction area because it will have electrical conduction.
• The front pa rt of blade is very sharp, anyway, please do not hold that part.
• Please do not act any operation in the working area, especially to note the children, pets, moreover, you should put on the helmet anti-dust glasses, glove etc. for protecting yourself. Please do not stand on the roof and unstable place where you are using this product.
• Please Do not let your hand close to the brake because it will clam your hand.
• Please close the blade part after using in order to prevent metal stopper from choke when opening. Besides, Please keep out of reach of children.

Note :

• Please do not neglect the above mentioned purpose and specification when using.
• Before using, Please check the screws are loosened or not the parts are damaged or not. To use Ratter assuring everything is correct

This gauges are useful for inspection of pet preforms neck. This is saves time required for inspection of preforms. Completely made from stainless steel material.

Preform gauges
Gauges for different neck sizes are available.

• 1810
• 1881
• 29/25
• 30/25
• Alaska

Following sizes can be checked.
Preform

• Neck inside diameter.
• Thread outside diameter.
• Tamper ring diameter.
• Tamper ring height.

The MB95’s halogen heating system distributes heat uniformly over the sample and speeds up the drying process — delivering fast and precise measurements. Designed for tool-free cleaning, the MB95’s components can be easily removed for quick and easy maintenance. Operating the MB95 is intuitive with the icon-driven menu navigation on the touchscreen display.

Standard Features:

• Increase Efficiency in your Lab with Fast Heating Halogen Technology
• The MB95’s precisely controlled halogen heating dries samples quickly and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability. Four drying profiles and five switch-off criteria help to perform customized sample tests.
• Define your Drying Parameters and Store Up to 20 Methods for Easy Recall
• MB95 can help you store up to 20 methods and 200 total results, for statistical analysis of measurements.
• Effortless Maintenance with the Tool-Free Cleaning Design
• Designed with effortless maintenance in mind, the MB95 features a removable pan handler and heating chamber components that make cleaning quick and easy—no tools needed.
• Touchscreen Icon-Based Menu Navigation Guides Users through Every Step Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB95 intuitive. Perform routine sample testing in three easy steps—no training required.

TBG Preform Perpendicularity Gauge verifies that the body of a preform is perpendicular to the finish surface. A rigid stand, designed to hold preforms in position for accurate measurement, permits quick and easy identification of bent or out-of-round preforms. This gauge comes complete with a high accuracy, digital readout with built-in port for serial communications.

TBG Preform Perpendicularity Tester is a consistent tool that helps the manufacturer in testing the perpendicularity of PET preforms. It is based on the principle to test the accuracy of the shape and size of preforms. Reliable and simple to use

Features :

• Optimum functionality
• Easy and accurate readout
• Comes with Zero Tolerance
• Adjustable measurement operations
• Repeatability in test measurements of preforms
• Longer functional life

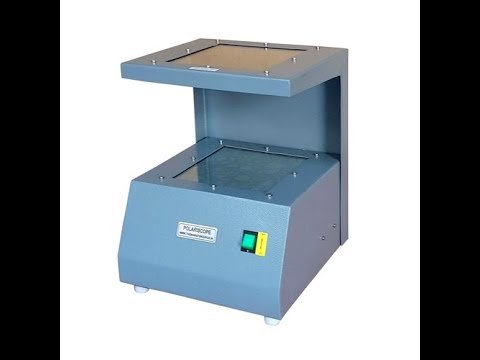

The Bharat Group is Polariscope Manufacturer in India guarantees precise and accurate testing. A polariscope is a device that uses polarized light to visualize and analyze the stress distribution in transparent materials like PET Preform and Glass. The device consists of a light source, a polarizer, and an analyzer, which are arranged in such a way that the light beam passes through the material under investigation. The material is then viewed through the analyzer, which reveals any stress patterns within it.

Ensure the quality and clarity of your glass or preform products with our Polariscope. The use of our polariscope  is widespread in materials science and laboratories, where it is used to analyze the properties of materials such as glass, plastics, PET preform etc.. For example, it can be used to identify stress points in glass objects such as windshields or bottles, to determine the quality of a plastic injection mould, or to analyze the structural integrity of Transparent Plastic components like PET Preform.

‘TBG’ Polariscope is used to view the internal material stresses and material flow characteristics of PET preforms and containers. This is ideal for laboratory use and at-the-line preform and bottle inspection

Defects in preform can be easily detected by using this equipment. When a preform is held parallel to viewing field colour pattern is seen known as isochromatic fringe. This indicates magnitude of the stresses introduced during moulding process. When a preform is held 45 deg to viewing field a coloured pattern known as isoclinic is seen, this indicates direction of stresses.

‘TBG’ Polariscope is used in the preform assembly to check the possible defect in the preforms. Take the precautions at the early stage would help a lot in cost cutting and time-saving.

A defect chart is provided to understand these defects.

Features :

• Different sizes polariscope available
• Customization available
• The devices gives you 2 slots for different light orientation; one is for 90° and other is for 45°
• The weight and sizes of the device are according to models
• The devices requires the standard power supply i.e. 220/240V

Eccentricity Tester is useful to check the thickness of preforms or bottles. It is provided with digital gauge for more accurate measurements. With equipment of revolving type with zero tolerance eccentricity, making it must for laboratory based applications. These are used for verifying parameters of banana performs where it’s revolving mechanism allows for accurate checking of eccentricity and thickness of preform.

Features :

• Suitable for checking perform eccentricity and thickness in laboratory setup
• Equipment is of revolving type and comes with zero tolerance for eccentricity
• Revolving mechanism also allows accurate checking of eccentricity and thickness
• Features LCD display support

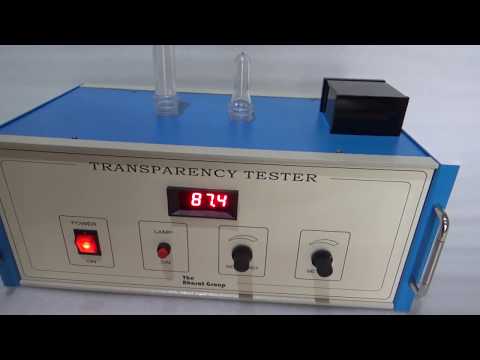

‘TBG’ Transparency Tester is also called Light Transmittance Meter. This is used to check transparency rate in PET PREFORM. This is special designed for PET Preform.
